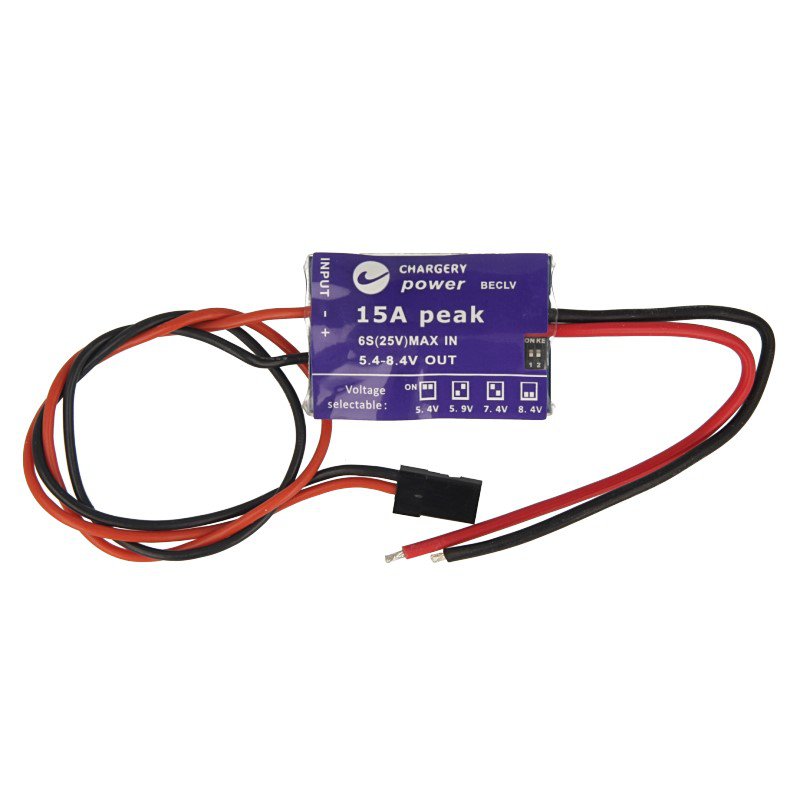

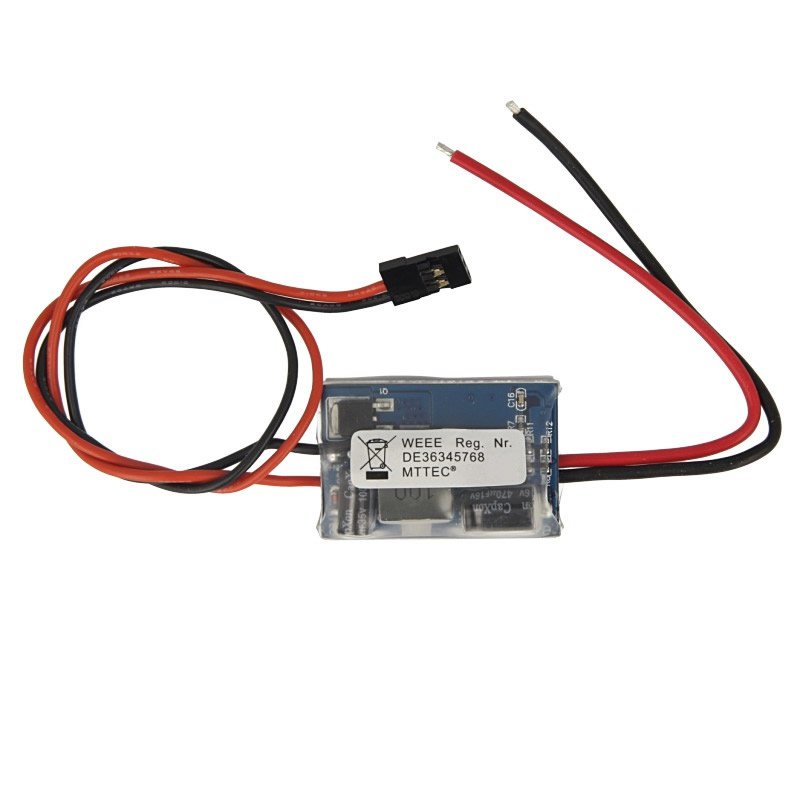

Chargery Super LV S-BEC V1.1 - 10A, 2-6S LIPO

Version 1.1 now with 10V output protection.


Features:

• High efficiency 5.4V, 5.9V, 7.4V and 8.4V selectable output voltage.
• Wide input voltage range from 6V to 25.2V (2S to 6S LiPo Cells). Minimum 10V input for 8.4V applications.
• High current capability of up to 10Amps continuous, 15Amps peak at input under 12V, 8Amps continuous and 12Amps peak at input under 25V.
• High power output that handles multiple servos including digital servos.
• Built-in Current and Thermal overload protection.
• Short circuit protection output
• Over voltage protection on output, when output voltage over 10.0V, the BEC will turn off within 0.1uS prevent receiver and servo from burning or fire.
• Ideal for R/C model 2.4GHz radio systems.
• Impact design: L43*W27*H10mm.
• Weight: 30g excluding wires

Package Contents:


• Chargery CPBECLV unit: 1pcs
• User Instruction Manual: 1pcs
