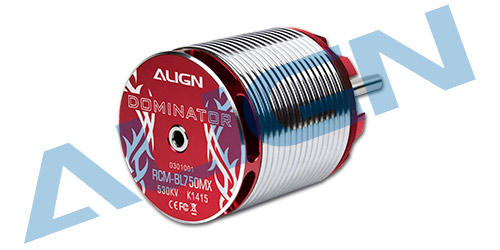

750MX Brushless Motor(530KV/4236)

●750MX(530KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
●The 750MX(530KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
●Maintenance free, high torque, high efficiency, stable and quiet.
●High-speed ball bearings, powerful magnetic outrunner rotor.
●Suitable for T-REX 600L / T-REX 700E helicopters, T-REX 600PRO must with performance booster(H60G004XXW).

●Input voltage: 12S
●Max continuous current: 100A/165A(5sec)
●Max output power: 4400W/7260W(5sec)
●KV value: 530KV
●Stator Dimension:4236
●Stator Arms: 12
●Magnet Poles: 10

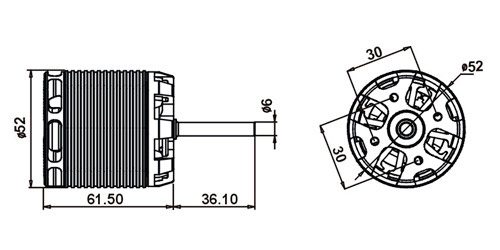

●Dimension: 6x52x61.5mm
●Weight: 452g

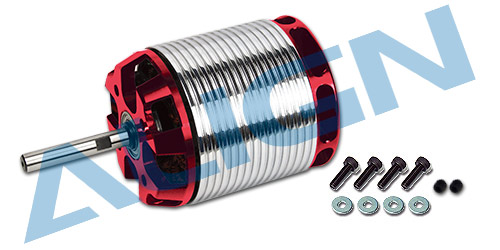

●Socket screw(M4X10)X4
●Washer(Φ4XΦ10X1)X4
●M4 Screw x 2 (M4x4mm)
