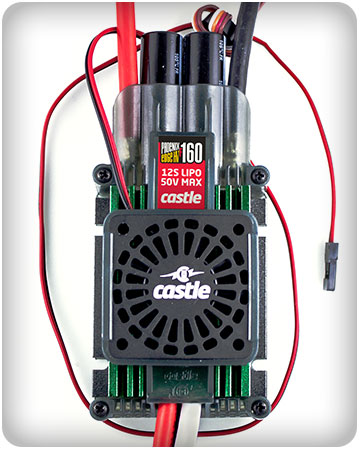

Castle EDGE HVF 160 with cooling fan

Fearture:
●The new Castle Edge ESC provide New Phoenix Controller AUX Line within more options as below:
a. Gain input-
Allow the ESC to utilize an additional receiver channel to adjust the governor gain.
b. RPM out-
Toggles the AUX Line for every electrical commutation. Divide this number by your number of magnetic pole pairs for mechanical RPM.
c. Excessive load detection-
Prevent damage caused by large current spikes typically caused by too much load or possibly a short in the motor wires.
d. Audible Beacon-
The controller will emit an audible locator signal from the motor when the AUX LINE is above 50% signal.
The beacon is only emitted if the motor is not running
e. Log Data Reset Percentage-
The users may select a percentage of the data buffer which all data is erased upon ESC boot up.
This helps to ensure that the most recent flight is logged.
●Comprehensive heli feature set, including direct entry governor mode, autorotation with bailout, and soft start capabilities to protect your gearing (see the screenshot on the right for more details).
●Opto isolated throttle cable helps reduce radio interference.
●Full data logging capabilities. Measure amp draw, controller temperature, motor rpms, battery voltage and ripple and more. Take the mystery out of electric flight.

●Surge current:160Amps
●Supporting motor types:2 poles to 10+poles in/outrunner brushless motors
●Max Supporting input voltage:50V(12s Li-Po/36 cells Nicad/NiMH)
●Size:111X52X30.6mm
●Weight:224g
●Please download the lastest version for your Castle Link


NOTE: Not including BEC. User need to provide the power for receiver and servo.
