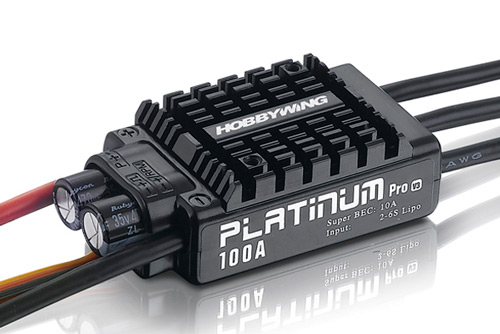

Platinum Pro 100A controller 2-6s BEC 10A for 480-550 helicopters
High-performance microprocessor with an operating frequency of up to 50MHz brings excellent compatibility with most of the available motors and high drive efficiency.
The maximum speed can reach up to 210,000 rpm (with 2 poles), 70,000 rpm (with 6 poles) and 35,000 rpm (with 12 poles) motors.
Various flight modes: Airplanes, helicopters Governor "Off" / "Elf" / "Store"
Adjustable throttle path for compatibility with most transmitters. It delivers smooth, linear throttle response with a very fast transmission.
Built-in highly efficient and powerful (switch mode) BEC with 5.2V / 6.0V / 7.4V or 8.4V output power.
The microprocessor is supplied by an independent DC regulator in order to reduce the susceptibility to interference and thus to reduce the loss of the signal.
Brand new governor program brings excellent speed control
"Restart with auto-rotation" can interrupt the automatic rotation manually in order to restart the motor quickly and thus avoid accidents due to incorrect operation.
Independent output for the motor speed signal
Compatible with the LCD Program Box (optional) to easily and visually program or reset the controller in all its parameters.
The firmware can be updated via the program box and its USB port using a PC.
The independent output can be used for programming with the program box or for reading out the status data. When coordinating with the data transmission module, the real-time data and protocol data can be read out
It has numerous protective functions such as extraordinary input voltage monitoring, undervoltage protection and signal loss protection which increase the safety and service life of the controller.
Technical specifications:
Model: Platinum-100A-V3
Main application area: 480-550 class helicopters
Input voltage: 2-6S LiPo, 5.2-25.2V
Continuous current / short-term: 100A / 150A (in 10 sec)
BEC: Switch Mode BEC with 5.2 / 6.0 / 7.4 / 8.4 volts at 10A (constant) / 25A (short-term)
(The BEC has a protective function which prevents the battery voltage from being looped through to the receiver should the BEC be damaged)
Programming output: It supplies 5.5V / 100mA power for the program box or an external fan
Input / output cable: 12AWG
Weight: 110g (with fan)
Dimensions: 70 x 35 x 32mm (with fan)
Content:
Hobbywing Platinum 100A V3
Fan with connector
2 cable ties
Shrink tubing
manual
