• The elegant cases are made by Aluminum. Each cooling slot and its fin were carefully designedand arranged, and the case has gone through oxidation, coloring and edge-highlighting.
• The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
• High-performance 32-bit processor combined with advanced algorithm makes the motor speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.
• Platinum-HV-200A makes the motor start extremely soft and avoids tail-drift issues of helicopter.The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect starting point for every flight.
• The built-in switch mode BEC with a continuously adjustable output voltage, range from 5V to 8V(step: 0.1V). It is certain to put out the power you need for rapid, precise steering servo operation.
• A high quality, and high voltage MOSFET with a great current endurance guarantees the ESC’s safety especially in a extremely high power demanding situation.
• Built-in sparkproof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connectors‘ lifespan.
• Support ASBOX multifunction programmer set up.
• Innovative Heat Dissipation Structure:The innovative "duo" stacking structure allows all components on both sides of the printed circuit boards to quickly conduct heat to the aluminum case.
• Use for T-REX 700X / 700L / 700E / 760X / 800E
Specifications
Supporting input voltage: 6 - 14S LiPo (22.2 - 51.8V)
Continuous current: 200A
Surge current: 300A
BEC output voltage: 5 - 8V
BEC output current: Continuous 10A (Surge 30A)
Size: 106x50x36mm
Weight: 325g
Content

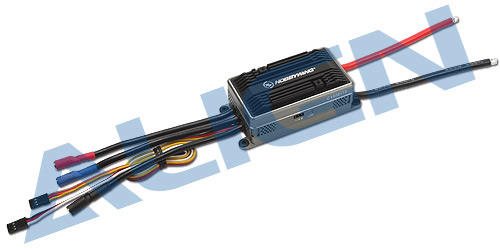

• 1x 200A Brushless ESC
• 1x Fan
• 2x Socket button head screw (M3x16mm)
