BL700H High Voltage Brushless Servo

●Utilizes brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
●Supports 7.4v high voltage to provide optimal speed and torque performance of the brushless servo.
●Designed specifically for helicopters, with highest specifications on the market: 0.065sec/60°ultra fast speed and 20kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
● Ultra high 12 bits signal resolution for excellent precision and smoothness.
●Hardened high strength superalloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports both analog and digital control signals.
● Suitable for T-Rex 550/600/700 cyclic and rudder use.

●Stall torque:15.0kg.cm(6.0V)
                   20.0kg.cm(7.4V)
●Motion speed:0.085sec/60°(6.0V)
                     0.065sec/60°(7.4V)
●Rating voltage:DC 4.8-7.4V
●Temperature range:-20°C至+60°C
●Dimension:40.3 x 20.1 x 38.7mm
●Weight:69g
●1520μs standard band

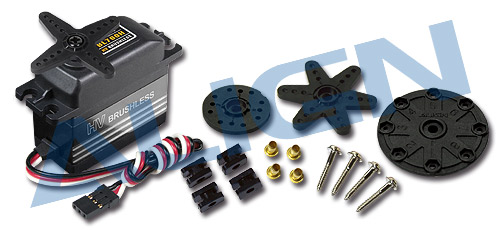

●Servo rudder piece x 4
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Tapping screw for servo x 4
