DS535M Digital Servo

●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●Higher signal resolution for smooth movements.
●Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports high voltage 8.4V.
●Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.

●Stall torque: 5.0kg.cm(6.0V)
                    6.5kg.cm(8.4V)
●Motion speed: 0.05sec/60°(6.0V)
                       0.035sec/60°(8.4V)
●Rating voltage: DC 6.0-8.4V
●Temperature range: -20°C ~ +60°C
●Dimension: 35.1 x 15.1 x 29mm
●Weight: 36g

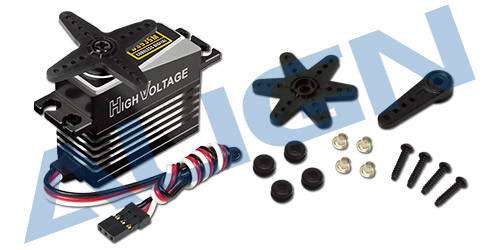

●DS535M Digital Servo x 1
●Servo Arm x 1
●DS515/525 Servo Arm Set x 1
●Socket Button Head Self Tapping Screw x 4(T2.6x12mm)
