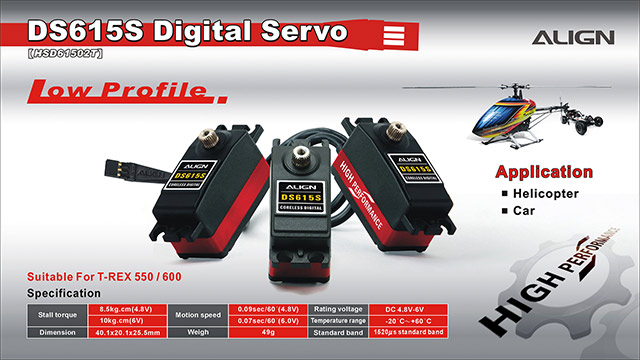

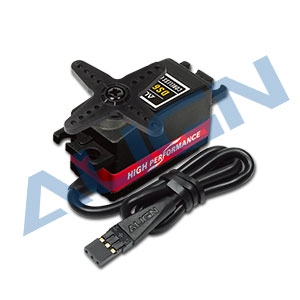

DS615S Cyclic Servo

●Special and unique low profile design, beside helicopters, also suitable for RC cars and airplanes.
●Using high efficiency coreless motor, higher performance superiority, increased output torque, faster reaction time, resulting in higher holding power on swashplate, providing precise control feel. Obviously its high performance is suitable for RC cars and airplanes.
●Silicone-insulated magnet wire, providing a high-end texture and a durable protection for the servo.
●Coreless Motor Design for fast speed, high efficiency, and low power consumption.
●Hardened high strength super alloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-REX 550/600 swashplate use, and also suitable for remote control cars, airplanes.

●Stall torque:8.5kg.cm(4.8V)
●Stall torque:10kg.cm(6.0V)
●Motion speed:0.09sec/60°(4.8V)
●Motion speed:0.07sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.1 x 20.1 x 25.5mm
●Weight:49g
●1520μs standard band

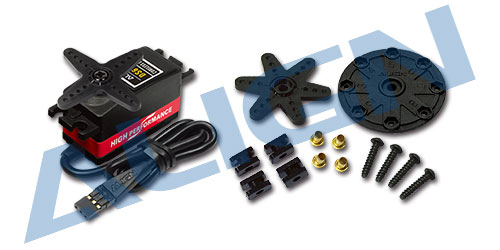

●Servo rudder piece x 2
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Socket button head tapping screw × 4(T2.6x12mm)
●F Servo horn x 1
