Standard size HV rudder servo, max 7,4V.
Specs : 6,0V - 4.4 kg-cm - 0.06 sec/60°
Specs : 7,4V - 5.0 kg-cm - 0.05 sec/60°
(2BB, MG, WP, MCC)
R1-F1634

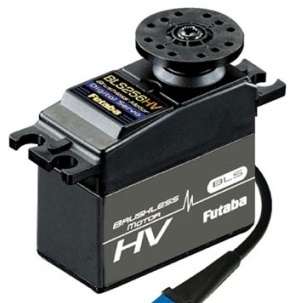

This is the Futaba BLS256HV High Voltage High Speed Digital Heli Rudder Servo.
FEATURES: Designed for rudder control in Futaba high end gyros Brushless motor Handles up to 2S LiPo battery power One year limited warranty through Hobby Services beginning at date of purchase
INCLUDES: Futaba BLS256HV Servo 0.83" (21mm) Diameter Round Horn 1.8" (45mm) Diameter Round Horn 1.6" (38.5mm) Diameter 4-Point Horn 1.2" (32mm) Diameter 6-Point horn Mounting Hardware
REQUIRES: Installing in heli, connecting linkage and connecting to gyro

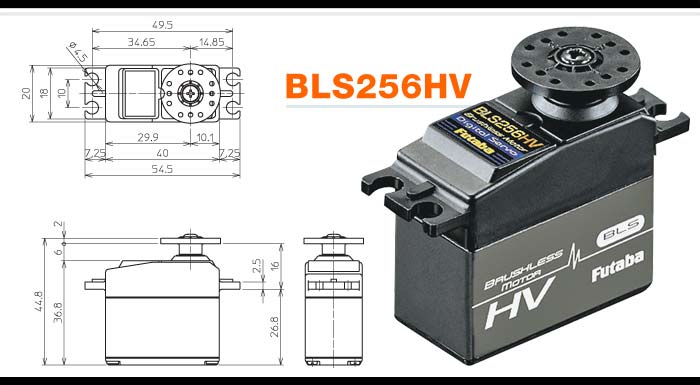

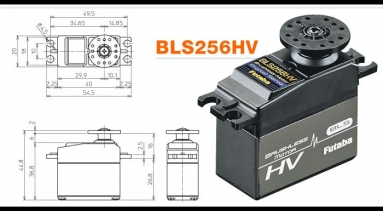

SPECS: Speed: 0.055 sec/60° at 6.6V 0.050 sec/60° at 7.4V Torque: 61.1 oz/in (4.4 kg/cm) at 6.6V 69.5 oz/in (5.0 kg/cm) at 7.4V Pulse Width: 760µs Frequency: 270Hz Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm) Weight: 2.15oz (61g) Power Supply: 6.0 - 7.4V DC
COMMENTS The BLS256HV is designed only for gyro rudder control. Dead band is set as narrowly as possible. When the fuselage is static, the servo may jitter. This condition is normal. Very high current drain is normal at startup. Always use a 6V - 7.4V battery.
