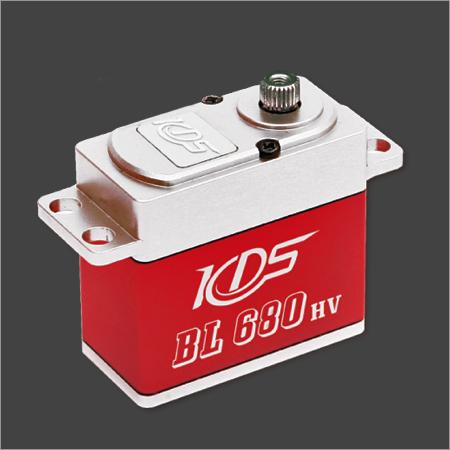

Betrouwbare en betaalbare HV servo.
Standard size cyclic servo, max 8,4V.
Specs : 6,0V - 14 kg-cm - 0.09 sec/60°
Specs : 7,4V - 17 kg-cm - 0.08 sec/60°
Specs : 8,4V - 20 kg-cm - 0.07 sec/60°
2004-12 BL 6
Product features: Using the most advanced micro brushless motor. Metal shell,Instant cooling and high efficiency. Metal gear design,more reliable action and durable and so accurate. Large torque,high speed. Specifications: Control mode: pulse width control Working frequency: 1520μs / 333hz Motor type: Brushless Motor Working voltage: DC6.0~8.4 V Working temperature: -10° to + 60°C Speed: 0.07sec/60 °@8.4V ) 0.08sec/60° @7.4V) 0.09sec/60° @6.0V Torque : 20kg.cm @8.4V ) 17kg.cm @7.4V) 14kg.cm @6.0V) Dimension: 40.5X20X37mm Weight: 71g
