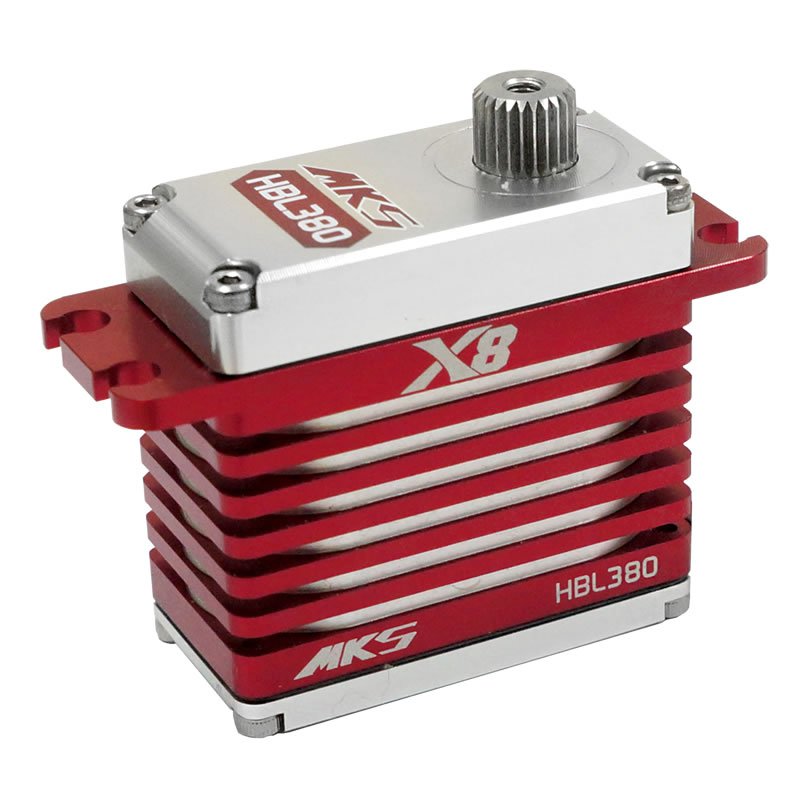

HBL380 HV Digital Servo brushless

Ultra Torque Servo

- Perfect Servo for large-scale airplane, jet and 1/8, 1/5 scale buggy.
- Ideal for CCPM on 700~800 class helicopter.
- Ultra torque, incredible efficiency, and low power consumption.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- Output performance to the top level ? smoother, faster, and more efficient.
- Special design for high voltage 2s LiPo operation.
- Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.

Torque: 31 kg-cm (6.0V)  /  39 kg-cm (7.4V)  /  41 kg-cm (8.2V)
Speed: 0.114 s (6.0V)  /  0.092 s (7.4V)  /  0.082 s (8.2V)
Weight: 73 g

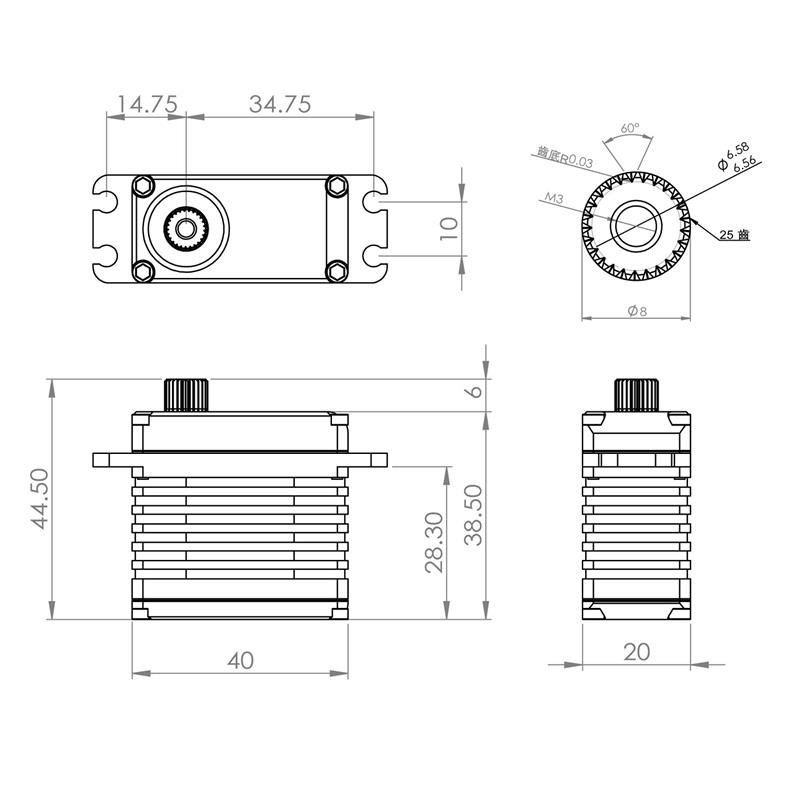

Dimension:40 x 20 x 38.5 mm
Working  Voltage:3.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working  frequency:1520µs / 333Hz
Dead Band:0.0008 ms (Default)
Bearing:12x8 mm Double bearings
Motor:Japan High Quality Brushless Motor
Gear:Chrome-Titanium alloy gear
Electric current draw: 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length:24 cm
