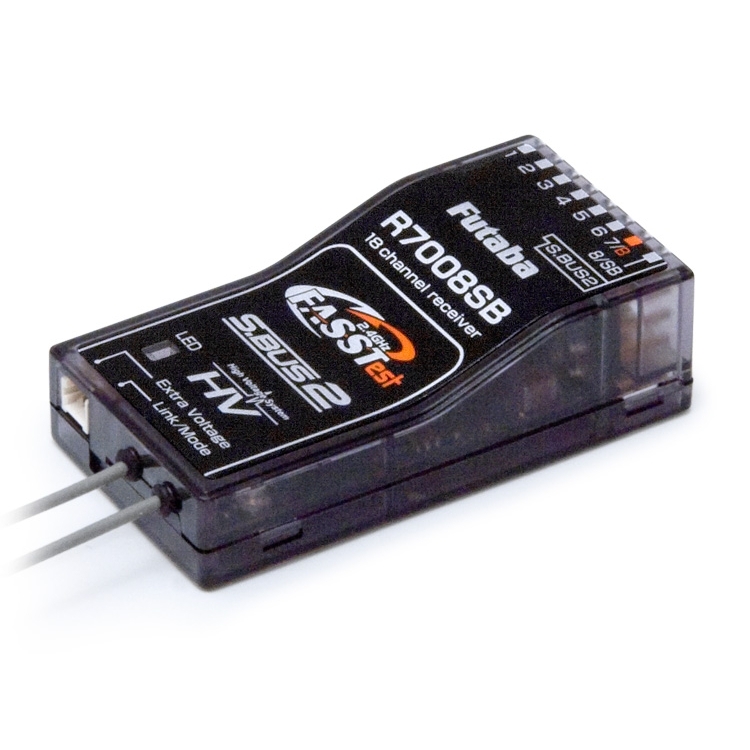

R7008SB FASSTest 2.4 GHz receiver

In spite of its small size of only 47.3 x 24.9 x 14.3 mm and a weight of just 13 g the R7008SB receiver is a multi-talented device. It features an integral telemetry transmitter, and can send up to 32 telemetry data sets to the ground over a range of > 1000 m.
Naturally the receiver is fitted with eight PWM outputs for normal servos. The PWM outputs are switchable, i.e. you can make use of either PWM channels 1...8 or 9...16. Two receivers can be operated in parallel to provide sixteen PWM channels.

Channel 8 can be switched to S.BUS mode, in which case up to eighteen S-BUS servos or other devices can be connected to this output.
Devices or sensors can be connected via the S.BUS2 socket, and up to 32 telemetry data sets can be transmitted. If two receivers are employed, the number of telemetry channels rises to 64.

The receiver's integral transmitter sends the telemetry data present at the S.BUS2 socket to the FASSTest® transmitter, where the data are displayed on-screen or generated in audible form. If a separate Wi-Fi-Box is used, the telemetry data can also be sent by radio to a smart-phone (Android, Apple), netbook, laptop, etc., and any monitor connected to that device.

When the receiver is connected, data such as receiver battery voltage, external voltage (max. 70 V DC) and aerial signal strength, i.e. the essential telemetry data, are automatically transmitted to the ground.

This receiver "only" works in conjunction with the new telemetry-capable FASSTest® transmitters. If you wish to use the receiver with a FASST or RASST transmitter, you need to use No. F1002, R6308SBT 2.4 GHz FASST.
