FEATURES:
T-FHSS SR (SUPER RESPONSE) AND T-FHSS TELEMETRY:
In addition to the T-FHSS telemetry system, we have added an SR-Super Response (T-FHSS SR) system which accelerates processing speed to further improve the answer. The SR system does not support the telemetry function. * R304SB and R304SB-E models are not compatible with the SR system.
T-FHSS MINIZ SYSTEM:
By choosing the MINIZ system in the receiver configuration menu, you can use the Kyosho Mini - Z Evo RA-42 dedicated receiver. The dedicated RA-42 receiver must be purchased separately.
TELEMETRY SYSTEM:

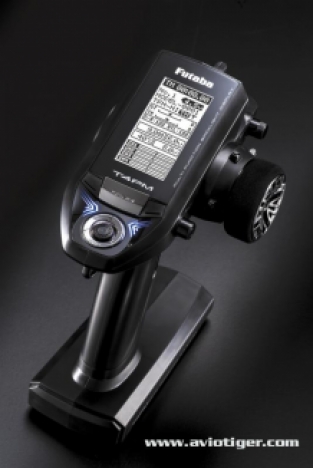

The T4PM transmitter adopted the newly developed “T-FHSS” two-way communication system.
MODEL MEMORY FOR 40 MODELS:
Model names can use up to 10 letters, numbers, and symbols. A model memory with different configurations can be created using the model copy function.
S.BUS SERVO:
This special function is used to define the parameters of S.Bus servos whose parameters are changed using the PC Link software. In addition to the usual cable system, it can be configured wirelessly in combination with the R334SBS or R334SBS-E.
STEERING MIX: Smooth
turns are possible with independent adjustment of left and right steering servo.
LARGE SCALE CAR BRAKE MIX (BRAKE): The front and rear wheel brake mix of 1/5 gasoline cars can be adjusted independently.
GYRO MIX (GYRO MIX):
The sensitivity of Futaba gyroscopes can be adjusted from T4PM.
4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPE:
This function can be used with Crawlers and other types of 4WS vehicles.
DUAL VARIATOR MIXING FOR TRACKED VEHICLES (DOUBLE ESC):
Front and rear controllers are controlled independently.
CPS-1 MIX (CPS MIX):
LED lighting and flashing control using our CPS-1 power switch can be combined with steering and throttle operation.
ABS BRAKE SYSTEM (TH ABS):
This function applies the brakes so that the tires of gasoline cars, etc., do not lose their grip on the track, even when braking in corners.
GAS ACCELERATION (ACCEL): Gasoline-powered cars have a time lag before the clutch and brakes take effect. This function reduces this delay.
GAS SPEED:
Sudden pulling of the trigger on a slippery track will only cause the tires to spin and prevent the model from accelerating smoothly. By adjusting the GAS speed function, the operation can be carried out easily and smoothly. It also improves battery consumption.
STEERING SPEED (SPEED):
When you feel the steering servo is too fast, etc., the operating speed of the servo can be adjusted.
CHRONO (TIMER):
The stopwatch can record 100 times and the total time. The timer can also be started automatically by a trigger operation. Race time and audible alarm can be set. The refueling time is indicated by an audible alarm. A timer is also available.
INTER SELECTION FUNCTION (SWITCH) / DIGITAL FUNCTION (TRIM DIAL):
This function is used to activate 2 inters, thumbwheel and digital trim. The amount of steps and the direction of operation can also be adjusted.
THE TRIP POSITION CAN BE CHANGED:
The throttle trigger position can be moved forward or back.
TENSION ADJUSTMENT FUNCTION:
The tension of the springs of the flywheel and throttle trigger can be adjusted externally.
ATL MECHANICAL ADJUSTMENT:
Perform this adjustment when you want to reduce the total travel on the brake (pressure) side of the throttle trigger.
TRANSMITTER SPECIFICATIONS:
T-FHSS SR / T-FHSS / S-FHSS SYSTEM, WHEEL, 4 CHANNELS.
SECURITY: F / S, BF / S,
TRANSMITTER FREQUENCY ID : 2.4 GHz band
CONTENTS:
-T4PM transmitter
-R334SB
-TX battery box
- Mini screwdriver
