450DFC Main Rotor Head Upgrade Set

Instruction:
●Follow by 700 DFC/600 DFC's design, the 450 DFC flybarless rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision, resulting in superior 3D performance and unimaginable flight speed with extremely attractive design.


Features:
●Extreme low CG and short main shaft design, dramatically reduces flight resistance, effectively improves T-Rex 450’s 3D performance and speed.
●New style linkage rod design, complete assembly increases linkage rod rigidity, allowing the pitch slider (follower) to be omitted, resulting in a head assembly that is much simplified and rigid.

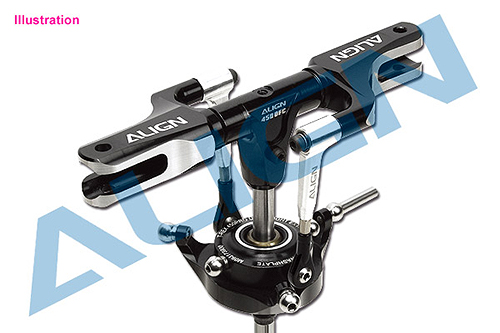

●Upgrading to the 450DFC rotor head assembly is extremely easy; just replace the head block included in the 450DFC kit, connect the 450DFC linkage assembly, and replace the main shaft with 450DFC main shaft. Existing swashplate is kept in the upgrade.
●The damper rubbers are manufactured utilizing POM material, sleek surface, with superior anti-wear characteristic.
●Suitable for all T-REX 450 Pro/Sprot V2 flybarless system Use 450 SE/SPORT must purchase additional dedicated Main Shaft Se H45H001XXW

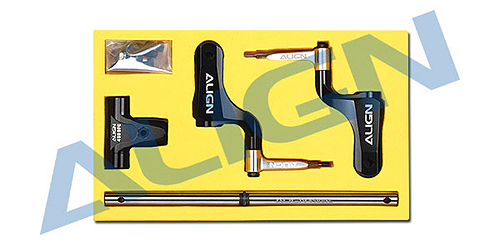

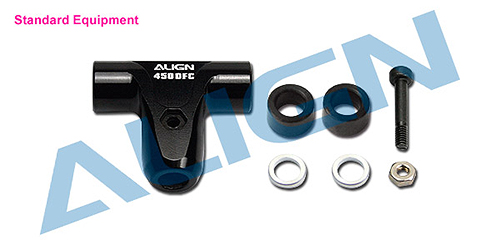

●450DFC Main Rotor Head Assembly x 1

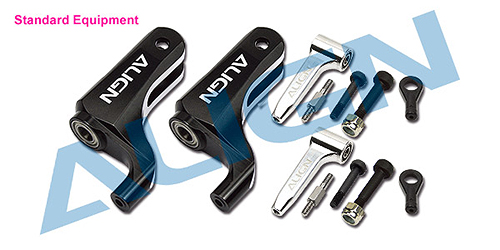

●450DFC Main Blade Grip x 2
●84ZZ Bearing x 4
●450DFC Damper rubber x 2 (POM Φ4xΦ6.5x3.8mm)
●Spacer × 2
●Socket collar screw(M2x12mm) x 1
●M2 Nut × 1
●M2 collar screw(M2x15mm) x 2
●450DFC Main rotor grip arm integrated control link x 2
●450DFC Main rotor grip linkage bearing sleeve x 2
●681ZZ-d2 Bearing(Φ2x4.5x2mm) x 4
●450DFC Linkage rod A x 2
●Ball link × 2
●450DFC Main Shaft x 1
●Socket collar screw × 2(M3x16mm)
●M3 Nut × 2(M3)
●Main shaft spacer × 1(Φ5×Φ9×0.1mm)
●Main shaft spacer × 1(Φ5×Φ9×0.2mm)
