450PRO V2 Metal Tail Pitch Assembly

●Utilizes dual point attachment design for zero play and higher precision control feel.
●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
●6061-T6 Aluminum alloy material and CNC processed.

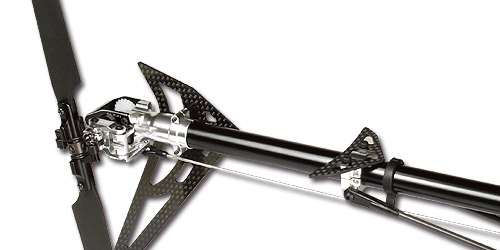

●Use for 450PRO V2 Tail gear box.
●Must with H45183 New Tail Pitch Control Link.

●450PRO V2 Metal plate(R) × 1
●I-shaped Arm × 1
●Mount Link × 1
●Slider Shaft × 1(Φ3x Φ4.8x10.6mm)
●Bearing mount washer × 1(Φ4x Φ5.1x1.6mm)
●Newly Tail pitch control link × 2(10.4xΦ5.1x4.2mm)
●Bearing holder × 1(9.2x8.2x6.5mm )
●Linkage ball A(M2x2.5) × 1(Φ4.75x7.18mm)
●Bearing MR83ZZ × 1(Φ3×Φ8×3mm)
●Bearing F681XZZ × 4(Φ1.5xΦ4xΦ5x2mm)
●Bearing MR74ZZ × 2(Φ4xΦ7x2.5mm)
●Bearing FMR52ZZ × 2(Φ2xΦ5x2.3mm)
●Socket button head screw × 2(M2x4mm)
●Socket button head screw × 4(#0-80x4mm)
●Socket button head screw × 4(M2×5mm)
●Socket button head screw × 1(M2×12mm)
